Rigid Frame Strander
Stranding cage 6, 12, 18, 24, 30
Diameter of single wire Cu φ1.5-4.5 mm/ Al φ1.8-4.5 mm
Max. Stranding cross-sectional area Al 800 mm2 /CU 630 mm2
Stranding pitch 34~950mm
Pay-off bobbin 500mm; 630mm; 710mm
Bobbin loading concentrate batch loading(automatic)
Tension pneumatic or mechanic control
Traction Single motor or individual motor for each cage

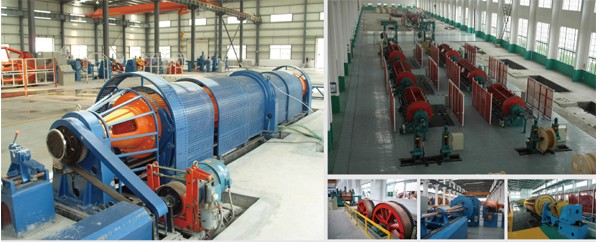

Tubular Strander
Stranding cage 6, 12
Diameter of single wire Cu 1.3～3.5mm / Al φ1.5-5.0 mm/steel:1.3～3.0mm
Max. Diameter after stranding 15mm
Stranding pitch 36～353mm
Pay-off bobbin 500mm; 630mm
Max rotating speed of cage 400r/min
