CCV Line

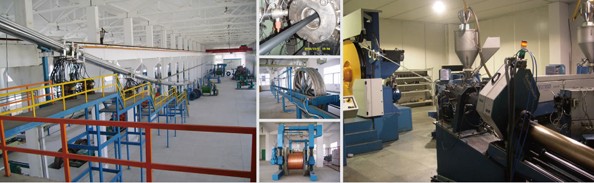

The production-line is designed for continuous manufacturing 6-35kV XLPE insulated power cable.
Cable voltage range 6~35kV
Conductor cross-section 25~630mm2 Cu/35~800mm2 Al
Cable weight max 10 kg / m
Cable diameter max 70 mm
Extruder 65mm+150mm+90mm
Crosshead Triple-layer co extrusion simultaneously
Sag control non-touch flux control
Line speed 0~30m/min
